Ubuntu 16.04 서버 설정

완성되지 않은 페이지 입니다.


목차

자료 정리 겸 우분투(Ubuntu) 16.04 기본서버 설정 방법에 대해서 정리 할 예정입니다.
  1. Ubuntu 설치
  2. 기본 설정
  3. OpenSSH 설치
  4. SSL 관련 설정
  5. VS FTP 설정
  6. LAMP Stack
    1. Apache2 설정
    2. MySQL 설정
    3. PHP 설정
    4. Wordpress 설정
  7. Mail 설정
    1. Postfix 설정
    2. Dovecot 설정
    3. Squirrelmail 설정
  8. 보안설정
    1. sshguard 설정
    2. Denyhosts 설정
    3. Rkhunter 설정
    4. logwatch 설정
    5. syslog 설정

1. Ubuntu 설치

Ubuntu 16.04 서버 설정의 하위 글 입니다.
  1. 언어 선택 후 "Ubuntu 설치" 버튼을 눌러 설치를 진행 합니다.
    00. 환영합니다.
    환영합니다.
  2. Ubuntu 설치 준비 중
    01. Ubuntu 설치 준비 중
    Ubuntu 설치 준비 중
  3. 설치 형식
    02. 설치 형식
    설치 형식
  4. 바뀐 점을 디스크에 쓰시겠습니까?
    03. 바뀐 점을 디스크에 쓰시겠습니까?
    바뀐 점을 디스크에 쓰시겠습니까?
  5. 어디에 살고 계신가요?
    04. 어디에 살고 계신가요?
    어디에 살고 계신가요?
  6. 키보드 배치
    05. 키보드 배치
    키보드 배치
  7. 당신은 누구십니까? (초기 계정 설정)
    06. 당신은 누구십니까?
    당신은 누구십니까?
  8. 우분투를 사용해주셔서 감사합니다. 파일 복사 중
    07. 파일 복사 중
    파일 복사 중
  9. 우분투를 사용해주셔서 감사합니다. 설치 중
    08. 설치 중
    설치 중
  10. 설치 완료 새로 설치한 프로그램을 사용하려면 컴퓨터를 다시 시작해야 합니다.
    09. 설치가 끝났습니다. 새로 설치한 프로그램을 사용하려면 컴퓨터를 다시 시작해야 합니다.
    설치가 끝났습니다.
  11. sudo apt-get cleansudo apt-get update 실행
    10. apt-get update
    apt-get 업데이트
  12. sudo apt-get upgrade 실행
    11. apt-get upgrade
    apt-get upgrade
  13. sudo reboot now 실행
    12. sudu reboot now
    sudo reboot now

2. 기본 설정

vim 설치

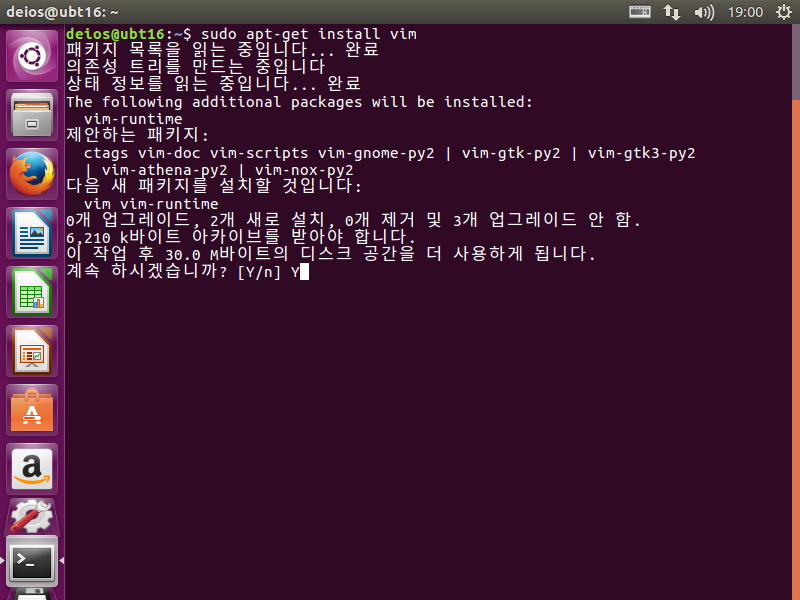

sudo apt-get install vim명령으로 vim을 설치합니다. sudo apt-get install vim
deios@ubt16:~$ sudo apt-get install vim
패키지 목록을 읽는 중입니다... 완료
의존성 트리를 만드는 중입니다
상태 정보를 읽는 중입니다... 완료
The following additional packages will be installed:
vim-runtime
제안하는 패키지:
ctags vim-doc vim-scripts vim-gnome-py2 | vim-gtk-py2 | vim-gtk3-py2
| vim-athena-py2 | vim-nox-py2
다음 새 패키지를 설치할 것입니다:
vim vim-runtime
0개 업그레이드, 2개 새로 설치, 0개 제거 및 3개 업그레이드 안 함.
6,210 k바이트 아카이브를 받아야 합니다.
이 작업 후 30.0 M바이트의 디스크 공간을 더 사용하게 됩니다.
계속 하시겠습니까? [Y/n] Y

locale 변경

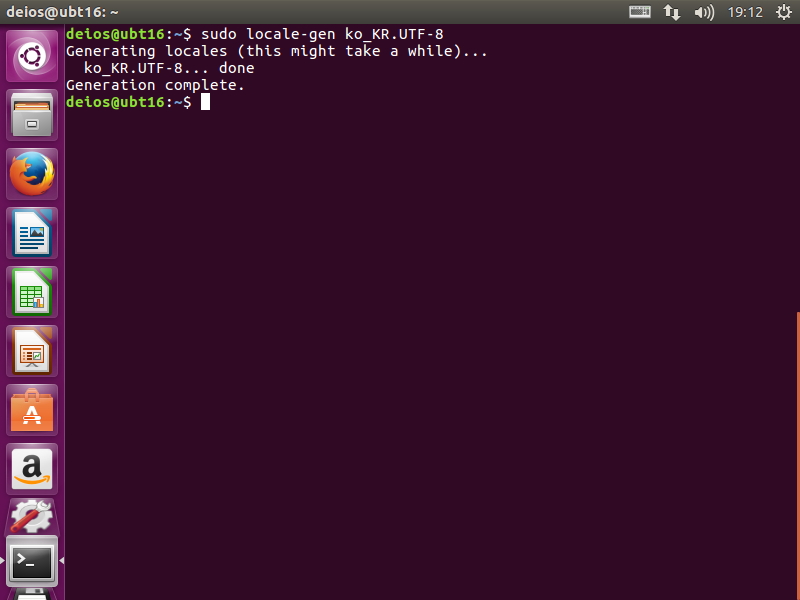

sudo locale-gen ko_KR.UTF-8명령으로 한국어 locale을 설치합니다. 2016-07-09 19 12 12
deios@ubt16:~$ sudo locale-gen ko_KR.UTF-8
Generating locales (this might take a while)...
ko_KR.UTF-8... done
Generation complete.

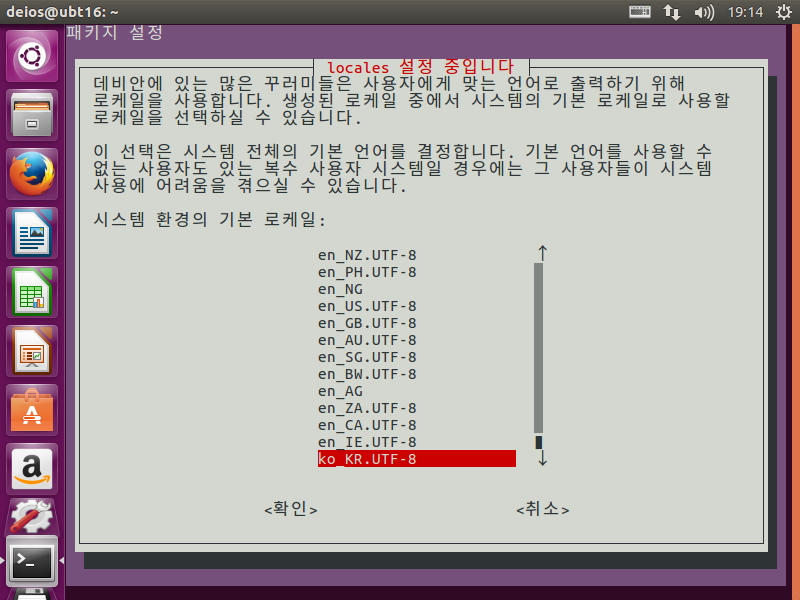

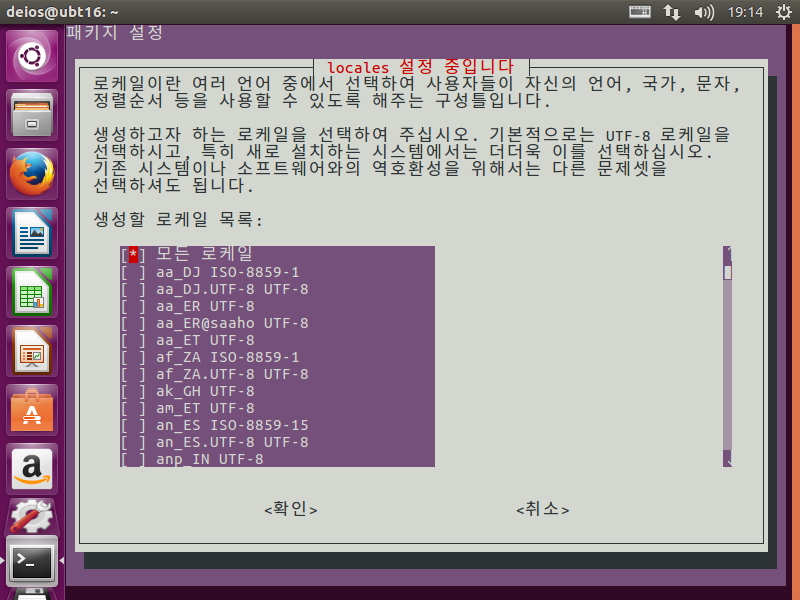

  sudo dpkg-reconfigure locales명령으로 locale을 재설정합니다. 2016-07-09 19 14 21 2016-07-09 19 14 41

NTP 설정

서버가 위치한 지역에 맞는 인터넷 시간을 서버에 자동으로 동기화 하는 방법입니다. 서버는 항상 정확한 시간을 보유할 필요가 있기 때문에, 필수적인 과정입니다.   sudo apt-get install ntp명령으로 ntp(network time protocal) client를 설치합니다.   대한민국 시간을 서버의 기준 시간으로 설정하기 위하여 다음과 같은 명령을 수행합니다. sudo cp /usr/share/zoneinfo/Asia/Seoul /etc/localtime   보다 빠른 시간 동기화를 위하여 ntp server의 주소를 알려줍니다. sudo vim /etc/ntp.conf 명령으로 파일의 끝에 다음과 같은 라인을 추가합니다.
server 1.asia.pool.ntp.org
server 1.kr.pool.ntp.org
server 2.asia.pool.ntp.org
server 3.asia.pool.ntp.org
server kr.pool.ntp.org
server ntp.ewha.net
server ntp.kornet.net
server ntp1.epidc.co.kr
server ntp2.epidc.co.kr
server ticktock.ewha.net
server time.bora.net
#server time.kornet.net
server time.kriss.re.kr
server time.nist.gov
server time.windows.com
server time-a.nist.gov
server time-b.nist.gov
server time-nw.nist.gov

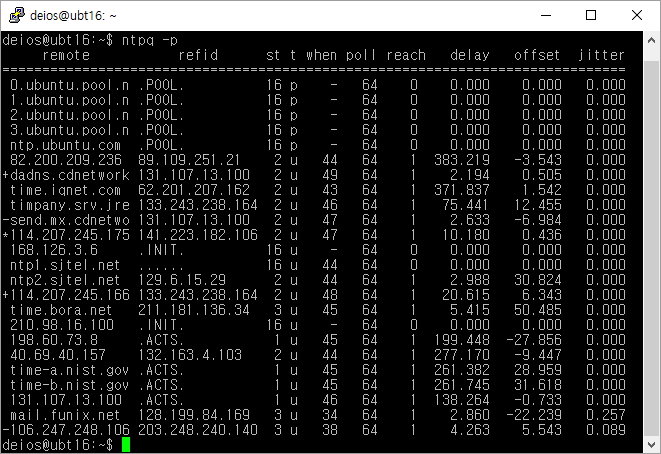

  sudo service ntp restart명령으로 ntp client를 재시작하고, 잠시 후 ntpq -p명령으로 동기화가 정확하게 수행되는지 확인합니다. 2016-07-09 21 25 08
deios@ubt16:~$ ntpq -p
remote refid st t when poll reach delay offset jitter
==============================================================================
0.ubuntu.pool.n .POOL. 16 p - 64 0 0.000 0.000 0.000
1.ubuntu.pool.n .POOL. 16 p - 64 0 0.000 0.000 0.000
2.ubuntu.pool.n .POOL. 16 p - 64 0 0.000 0.000 0.000
3.ubuntu.pool.n .POOL. 16 p - 64 0 0.000 0.000 0.000
ntp.ubuntu.com .POOL. 16 p - 64 0 0.000 0.000 0.000
82.200.209.236 89.109.251.21 2 u 44 64 1 383.219 -3.543 0.000
+dadns.cdnetwork 131.107.13.100 2 u 49 64 1 2.194 0.505 0.000
time.iqnet.com 62.201.207.162 2 u 43 64 1 371.837 1.542 0.000
timpany.srv.jre 133.243.238.164 2 u 46 64 1 75.441 12.455 0.000
-send.mx.cdnetwo 131.107.13.100 2 u 47 64 1 2.633 -6.984 0.000
*114.207.245.175 141.223.182.106 2 u 47 64 1 10.180 0.436 0.000
168.126.3.6 .INIT. 16 u - 64 0 0.000 0.000 0.000
ntp1.sjtel.net ...... 16 u 44 64 0 0.000 0.000 0.000
ntp2.sjtel.net 129.6.15.29 2 u 44 64 1 2.988 30.824 0.000
+114.207.245.166 133.243.238.164 2 u 48 64 1 20.615 6.343 0.000
time.bora.net 211.181.136.34 3 u 45 64 1 5.415 50.485 0.000
210.98.16.100 .INIT. 16 u - 64 0 0.000 0.000 0.000
198.60.73.8 .ACTS. 1 u 45 64 1 199.448 -27.856 0.000
40.69.40.157 132.163.4.103 2 u 44 64 1 277.170 -9.447 0.000
time-a.nist.gov .ACTS. 1 u 45 64 1 261.382 28.959 0.000
time-b.nist.gov .ACTS. 1 u 45 64 1 261.745 31.618 0.000
131.107.13.100 .ACTS. 1 u 46 64 1 138.264 -0.733 0.000
mail.funix.net 128.199.84.169 3 u 34 64 1 2.860 -22.239 0.257
-106.247.248.106 203.248.240.140 3 u 38 64 1 4.263 5.543 0.089


3. OpenSSH 설치

sudo apt-get install openssh-server명령으로 OpenSSH설치 2016-07-09 20 13 57   sudo vim /etc/ssh/sshd_config명령으로 설정파일 수정
LoginGraceTime 60
PermitRootLogin no
LoginGraceTime로 로그인 대기 시간을 설정하고, PermitRootLogin로 root 로그인을 제한합니다.   추가로 로그인시 배너를 출력해주려면 72번 라인의 주석을 해제합니다.
Banner /etc/issue.net
  해제 후 sudo vim /etc/issue.net명령으로 배너를 수정합니다. 저의 경우에는 다음과 같은 배너를 사용합니다.
***************************************************************************
                            NOTICE TO USERS

This computer system is the private property of its owner, whether
individual, corporate or government.  It is for authorized use only.
Users (authorized or unauthorized) have no explicit or implicit
expectation of privacy.

Any or all uses of this system and all files on this system may be
intercepted, monitored, recorded, copied, audited, inspected, and
disclosed to your employer, to authorized site, government, and law
enforcement personnel, as well as authorized officials of government
agencies, both domestic and foreign.

By using this system, the user consents to such interception, monitoring,
recording, copying, auditing, inspection, and disclosure at the
discretion of such personnel or officials.  Unauthorized or improper use
of this system may result in civil and criminal penalties and
administrative or disciplinary action, as appropriate. By continuing to
use this system you indicate your awareness of and consent to these terms
and conditions of use. LOG OFF IMMEDIATELY if you do not agree to the
conditions stated in this warning.

****************************************************************************

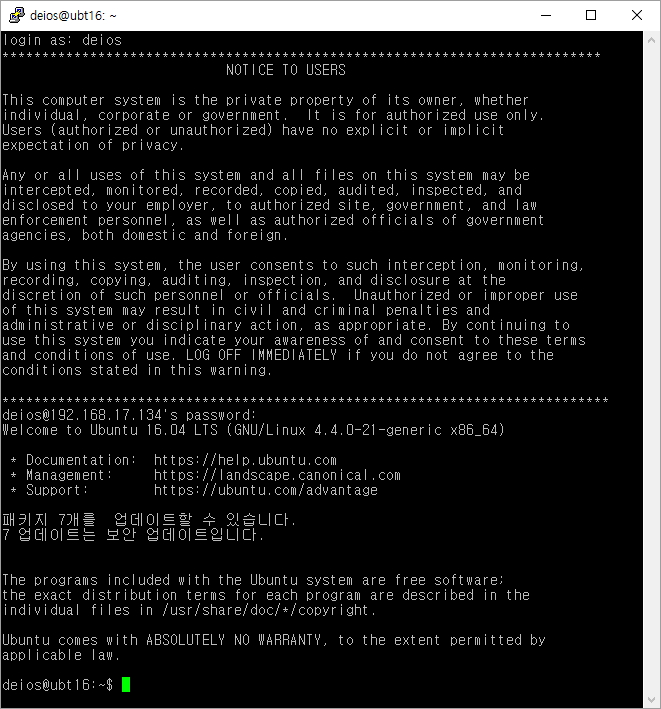

  sudo service ssh restart명령으로 OpenSSH 서버를 재시작합니다. 2016-07-09 20 58 45

4. SSL 관련 설정

openssl x509 -in deios.kr.crt -out deios.kr.der -outform DER

openssl x509 -in deios.kr.der -inform DER -out deios.kr.pem -outform PEM

openssl x509 -in wosign.com.crt -out wosign.com.der -outform DER

openssl x509 -in wosign.com.der -inform DER -out wosign.com.pem -outform PEM

openssl x509 -in chain.wosign.com.crt -out chain.wosign.com.der -outform DER

openssl x509 -in chain.wosign.com.der -inform DER -out chain.wosign.com.pem -outform PEM

cat deios.kr.pem wosign.com.pem chain.wosign.com.pem > chain.deios.kr.pem

chmod 644 *.crt

chmod 644 *.csr

chmod 644 *.der

chmod 644 *.pem

chmod 600 *.key

chmod 660 *.key.secure

cp *.crt /etc/ssl/certs/

cp *.csr /etc/ssl/certs/

cp *.der /etc/ssl/certs/

cp *.pem /etc/ssl/certs/

cp *.key /etc/ssl/private/

cp *.key.secure /etc/ssl/private/

ln -s /etc/ssl/certs/deios.kr.crt /etc/ssl/certs/server.crt

ln -s /etc/ssl/certs/deios.kr.der /etc/ssl/certs/server.der

ln -s /etc/ssl/certs/deios.kr.pem /etc/ssl/certs/server.pem

ln -s /etc/ssl/certs/chain.deios.kr.pem /etc/ssl/certs/chain.pem

ln -s /etc/ssl/private/deios.kr.key /etc/ssl/private/server.key

a2enmod ssl

vim /etc/apache2/sites-enabled/000-dworld_ssl.conf

            SSLCertificateChainFile /etc/ssl/certs/chain.wosign.com.crt
            SSLCACertificateFile /etc/ssl/certs/wosign.com.crt
            SSLCACertificatePath /etc/ssl/certs/
            SSLCertificateFile      /etc/ssl/certs/server.crt
            SSLCertificateKeyFile /etc/ssl/private/server.key

vim /etc/vsftpd.conf

rsa_cert_file=/etc/ssl/certs/server.crt rsa_private_key_file=/etc/ssl/private/server.key ssl_enable=YES

service vsftpd restart


5. VS FTP 설정

apt-get install vsftpd

vim /etc/vsftpd.conf

write_enable=YES local_umask=022 chroot_local_user=YES allow_writeable_chroot=YES rsa_cert_file=/etc/ssl/certs/server.crt rsa_private_key_file=/etc/ssl/private/server.key ssl_enable=YES

service vsftpd restart


6. LAMP Stack


6-1. Apache2 설정

apt-get install apache2

apt-get install curl

a2enmod rewrite

a2enmod userdir

a2dismod autoindex

a2enmod ssl

vim /etc/apache2/conf-enabled/security.conf

ServerTokens Prod ServerSignature Off TraceEnable Off

vim /etc/apache2/sites-enabled/000-dworld_ssl.conf

            SSLCertificateChainFile /etc/ssl/certs/chain.wosign.com.crt
            SSLCACertificateFile /etc/ssl/certs/wosign.com.crt
            SSLCACertificatePath /etc/ssl/certs/
            SSLCertificateFile      /etc/ssl/certs/server.crt
            SSLCertificateKeyFile /etc/ssl/private/server.key

systemctl restart apache2


6-2. MySQL 설정

apt-get install mysql-server

#vim /etc/mysql/debian.cnf [client] default-character-set = utf8mb4

vim /etc/mysql/conf.d/mysql.cnf

[mysql] default-character-set = utf8mb4

vim /etc/mysql/conf.d/mysqldump.cnf

[mysqldump] max_allowed_packet = 2048M default-character-set = utf8mb4

vim /etc/mysql/mysql.conf.d/mysqld.cnf

[mysqld] character-set-client-handshake=FALSE init_connect="SET collation_connection = utf8mb4_unicode_ci" init_connect="SET NAMES utf8mb4" character-set-server = utf8mb4 collation-server = utf8mb4_unicode_ci

service mysql restart


6-3. PHP 설정

apt-get install php libapache2-mod-php php-mcrypt php-mysql

vim /etc/apache2/mods-enabled/dir.conf

systemctl restart apache2

systemctl status apache2

apt-get install php-cli

vim /etc/php/7.0/apache2/php.ini

short_open_tag = On

vim /var/www/html/index.php

rm -rf /var/www/html/index.php

apt-get install php-curl php-gd php-mbstring php-mcrypt php-xml php-xmlrpc

vim /etc/apache2/mods-enabled/php7.0.conf

#php_admin_flag engine Off

apt-get install php-gd php-imap php-dev


6-4. WordPress 설정

chown -R deios:www-data /Home/deios/public_html/wp

chmod 660 .htaccess

chmod 660 wp-content/.htaccess

chown -R deios:www-data /Home/deios/public_html/wp

find /Home/deios/public_html/wp -type d -exec chmod g+s {} \;

chmod g+w wp-content

chmod -R g+w wp-content/themes

chmod -R g+w wp-content/plugins

chmod -R g+w wp-content/uploads

chmod 770 wordfence-waf.php

chmod 770 wp-content/advanced-cache.php

chmod 770 wp-content/wp-cache-config.php

chmod -R 770 wp-content/cache

chmod -R 770 wp-content/wfcache

chmod -R 770 wp-content/wflogs

curl -s https://api.wordpress.org/secret-key/1.1/salt/

mysqladmin -u root -p create [DB명]

mysql -u root -p

mysql> use mysql; mysql> grant all privileges on [DB명].* to [ID]@localhost identified by '[비밀번호]' with grant option; mysql> FLUSH PRIVILEGES; mysql> quit;

mysql -u root -p [DB명] < [백업 SQL명]


7. Mail 설정


7-1. Postfix 설정

apt-get install postfix

dpkg-reconfigure postfix

vim /etc/postfix/main.cf

home_mailbox = Maildir/ smtpd_sasl_type = dovecot smtpd_sasl_path = private/auth smtpd_sasl_local_domain = smtpd_sasl_security_options = noanonymous broken_sasl_auth_clients = yes smtpd_sasl_auth_enable = yes smtpd_recipient_restrictions = permit_sasl_authenticated,permit_mynetworks,reject_unauth_destination smtp_tls_security_level = may smtpd_tls_security_level = may smtp_tls_note_starttls_offer = yes smtpd_tls_loglevel = 1 smtpd_tls_received_header = yes smtpd_tls_cert_file=/etc/ssl/certs/server.pem smtpd_tls_key_file=/etc/ssl/private/server.key smtpd_tls_CAfile = /etc/ssl/certs/wosign.com.pem smtpd_tls_CApath = /etc/ssl/certs/

vim /etc/postfix/master.cf

submission inet n - y - - smtpd -o syslog_name=postfix/submission -o smtpd_tls_security_level=encrypt -o smtpd_sasl_auth_enable=yes -o smtpd_relay_restrictions=permit_sasl_authenticated,reject -o milter_macro_daemon_name=ORIGINATING smtps inet n - y - - smtpd -o syslog_name=postfix/smtps -o smtpd_tls_wrappermode=yes -o smtpd_sasl_auth_enable=yes -o smtpd_relay_restrictions=permit_sasl_authenticated,reject -o milter_macro_daemon_name=ORIGINATING

service postfix restart


7-2. Dovecot 설정

apt-get install dovecot-common

vim /etc/dovecot/conf.d/10-master.conf

unix_listener /var/spool/postfix/private/auth { mode = 0666 user = postfix group = postfix }

vim /etc/dovecot/conf.d/10-auth.conf

auth_mechanisms = plain login

apt-get install dovecot-imapd dovecot-pop3d

vim /etc/dovecot/conf.d/10-mail.conf

mail_location = maildir:~/Maildir

vim /etc/dovecot/conf.d/20-pop3.conf

pop3_uidl_format = %08Xu%08Xv

vim /etc/dovecot/conf.d/10-ssl.conf

ssl = yes ssl_cert = ssl_key = ssl_ca =

newaliases

service dovecot restart


7-3. Squirrelmail 설정

apt-get install squirrelmail

squirrelmail-configure

cp /etc/squirrelmail/apache.conf /etc/apache2/sites-available/squirrelmail.conf

a2ensite squirrelmail

service apache2 restart


8. 보안설정


8-1. sshguard 설정

apt-get install sshguard


8-2. Denyhosts 설정

apt-get install denyhosts

vim /etc/denyhosts.conf

PURGE_DENY = 1d

service denyhosts restart


8-3. Rkhunter 설정

apt-get install rkhunter

vim /etc/default/rkhunter

CRON_DAILY_RUN="true" CRON_DB_UPDATE="true" APT_AUTOGEN="true" DB_UPDATE_EMAIL="true" REPORT_EMAIL="[email protected]"

rkhunter --propupd

rkhunter --checkall


8-4. logwatch 설정

apt-get install logwatch

mkdir /var/cache/logwatch

vim /usr/share/logwatch/default.conf/logwatch.conf

Output = mail Format = text MailTo = [email protected] Detail = Med

cp /usr/share/logwatch/default.conf/logwatch.conf /etc/logwatch/conf/

cp /usr/share/logwatch/default.conf/logfiles/http.conf /etc/logwatch/conf/logfiles/


8-5. syslog 설정

sudo vim /etc/rsyslog.d/70-Remote.conf
*.warn     @[원격지IP]
sudo service rsyslog restart

8-6. fail2ban 설정

apt-get install fail2ban

vim paths-debian.conf

syslog_mail_warn = /var/log/mail.warn postfix_log = %(syslog_mail_err)s dovecot_log = %(syslog_mail_err)s nginx_error_log = apache_access_log nginx_access_log = apache_error_log

vim /etc/fail2ban/jail.d/defaults-debian.conf

[dovecot] enabled = true [php-url-fopen] enabled = true [vsftpd] enabled = true [postfix-rbl] enabled = true [postfix-sasl] enabled = true [postfix] enabled = true

9. 기타
